FLB767
Description
Pattern characteristic:
-

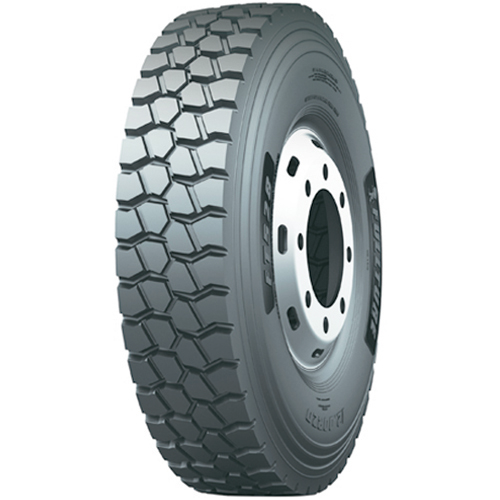

All weather pattern design, with excellent traction performance. Reinforced bead ring design,with better resistance to overload. To strengthen the body and high impact resistance belt design, can be repeated use of refurbished tires.
- Short haul trucks, dump truck, mixer truck, tractor driving wheel. National highway, urban and rural areas, construction sites and other mixed roads.
| SIZE | PR |
STANDARD
RIM
|
LOAD INDEX &
SPEED RATING
|
OUTER
DIAMETER
(mm)
|
SECTION WIDTH
(mm)
|
MAX LOAD(KG)
SINGLE/DUAL
|
MAX
PRESSURE
(KPA)
|
| 7.50R16LT | 14 | 6.00G | 122/118L | 805 | 215 | 1500/1320 | 770 |
| 8.25R16LT | 16 | 6.50H | 128/124K | 855 | 235 | 1800/1600 | 770 |
| 8.25R20 | 16 | 6.50 | 139/137K | 974 | 236 | 2430/2300 | 930 |
| 9.00R20 | 16 | 7.00 | 144/142K | 1018 | 259 | 2800/2650 | 900 |
| 10.00R20 | 18 | 7.50 | 149/146K | 1049 | 278 | 3250/3000 | 930 |
| 11.00R20 | 18 | 8.00 | 152/149K | 1085 | 293 | 3550/3250 | 930 |
| 12.00R20 | 20 | 8.50 | 156/153K | 1125 | 315 | 4000/3650 | 900 |
